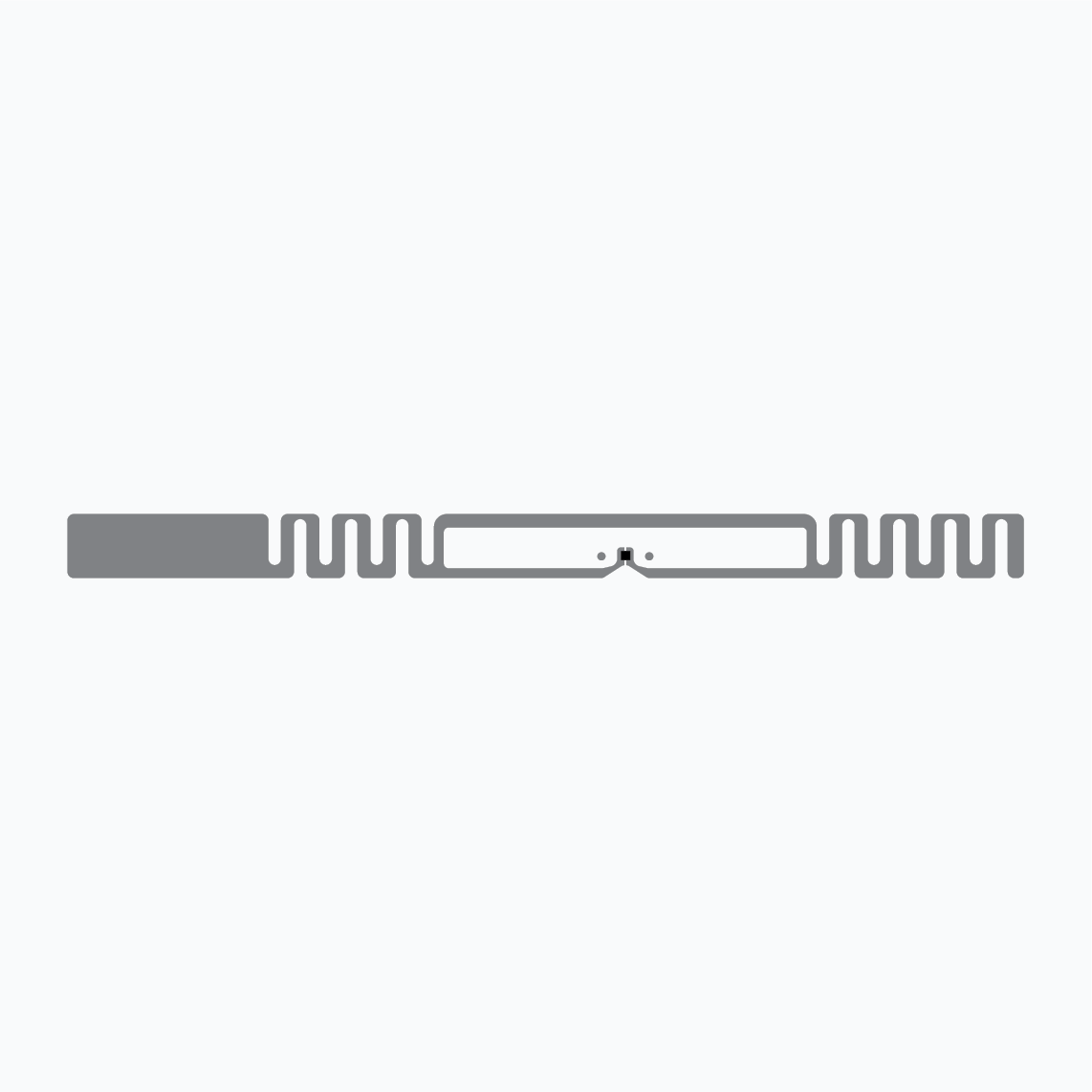

AD-164 U9  [UHF RFID tag and inlay]

UHF RFID Inlay: AD-164 U9

Optimum read ranges in challenging environments

Industry segments: Beauty and Personal Care, Healthcare

AD-164 U9 inlays from Avery Dennison are designed for tagging a wide range of items, particularly housewares, beauty & personal care, and pharmaceuticals.

Built for the UHF frequency band, the inlays feature a 60 x 4 mm antenna with a global design. It ensures excellent broadband performance (860-930 MHz) that can achieve up to 7 meters read distance on high dielectric materials such as glass, plastics and near liquid (results may vary).

The slender form factor and rectangular shape further contributes to the versatile use in retail oriented applications to increase inventory accuracy, improve supply chain agility, and enhance visibility across all channels. AD-164u U9 features the UCODE 9 chip that is equipped with 96 bits of EPC memory, including a 96-bit Tag IDentifier (TID) with a 48-bit unique serial number factory-encoded into the TID. The IC offers a Self Adjust feature to maximize product performance in challenging environments and has an improved read and write sensitivity and faster encoding speed compared to NXP UCODE 8. Delivery formats include dry, wet and label.

Like all RFID products from Avery Dennison, AD-164 U9 inlays are manufactured according to the industry’s highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.

Our inlays and tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management. This ensures a reliable and state-of-the-art product that meets a variety of application needs, where high performance is a critical parameter.

Please find a comprehensive overview of all features in the data sheet.

UHF RFID Inlay:  AD-164 U9

AD-164 U9, UCode 9

  • Chip: NXP UCode 9
  • Operating frequency:
    UHF (860-960 Mhz)
  • Antenna dimensions:
    60 x 4 mm / 2.362 x 0.157 in
  • Die cut dimensions:
    64 x 6 mm / 2.520 x 0.236 in
  • EPC memory: 96 bits
  • TID memory: 96-bits
  • Product code:
    Dry inlay 3008611
    Wet inlay 3008613
    Label/sticker 3008612
